Cloud-Native AI Model Management and Distribution for Inference Workloads
Cloud-native AI model management and distribution for scalable inference
March 11, 2026
Author:
Reviewer:
As AI adoption accelerates across industries, organizations face a critical bottleneck that is often overlooked until it becomes a serious obstacle: reliably managing and distributing large model weight files at scale. A model’s weights serve as the central artifact that bridges both training and inference pipelines — yet the infrastructure surrounding this artifact is frequently an afterthought.
This article addresses the operational challenges of managing AI model artifacts at enterprise scale, and introduces a cloud-native solution that brings software delivery best practices — versioning, immutability, and GitOps, to the world of large model files.
The cloud native gap: Most existing ML model storage approaches were not designed with Kubernetes-native delivery in mind, leaving a critical gap between how software artifacts are managed and how model artifacts are managed.
Today, enterprises operate AI infrastructure on Kubernetes yet their model artifact management lags behind. Software containers are pulled from OCI registries with full versioning, security scanning, and rollback support. Model weights, by contrast, are often downloaded via ad hoc scripts, copied manually between storage buckets, or distributed through unsecured shared filesystems. This gap creates deployment fragility, security risks, and operational overhead at scale.
Modern foundation models are not small. A single model checkpoint can range from tens of gigabytes to several terabytes. For reference, a quantized LLaMA-3 70B model weighs approximately 140 GB, while frontier multimodal models can easily exceed 1 TB. These are not files you version-control with standard Git — they demand dedicated storage strategies, efficient transfer protocols, and careful access control.
The core challenges are: storage at scale, distribution speed, and reproducibility. Teams need to store multiple model versions, rapidly distribute them to GPU inference nodes across regions, and guarantee that any deployment can be traced back to an exact, immutable artifact.
| Git LFS (Hugging Face Hub) | Object Storage (S3, MinIO) | Distributed Filesystem (NFS, CephFS) | |
|---|---|---|---|
| Pros | Native version control (branches, tags, commits, history). | Standard offering from cloud providers. Native support in engines like vLLM/SGLang. | POSIX compatible. Low integration cost. |
| Cons | Poor protocol adaptation for cloud-native environments. Inherits Git’s transport inefficiencies, lacks optimizations for huge file distribution. | Lacks structured metadata. Weak version management capabilities. | Lacks structured metadata. Weak version management capabilities. High operational complexity for distributed filesystem. |
The approach described here treats AI model weights as first-class OCI (Open Container Initiative) artifacts, packaging them in the same container registries used for application images. This enables model delivery to leverage the full ecosystem of container tooling: security scanning, signed provenance, GitOps-driven deployment, and Kubernetes-native pulling.

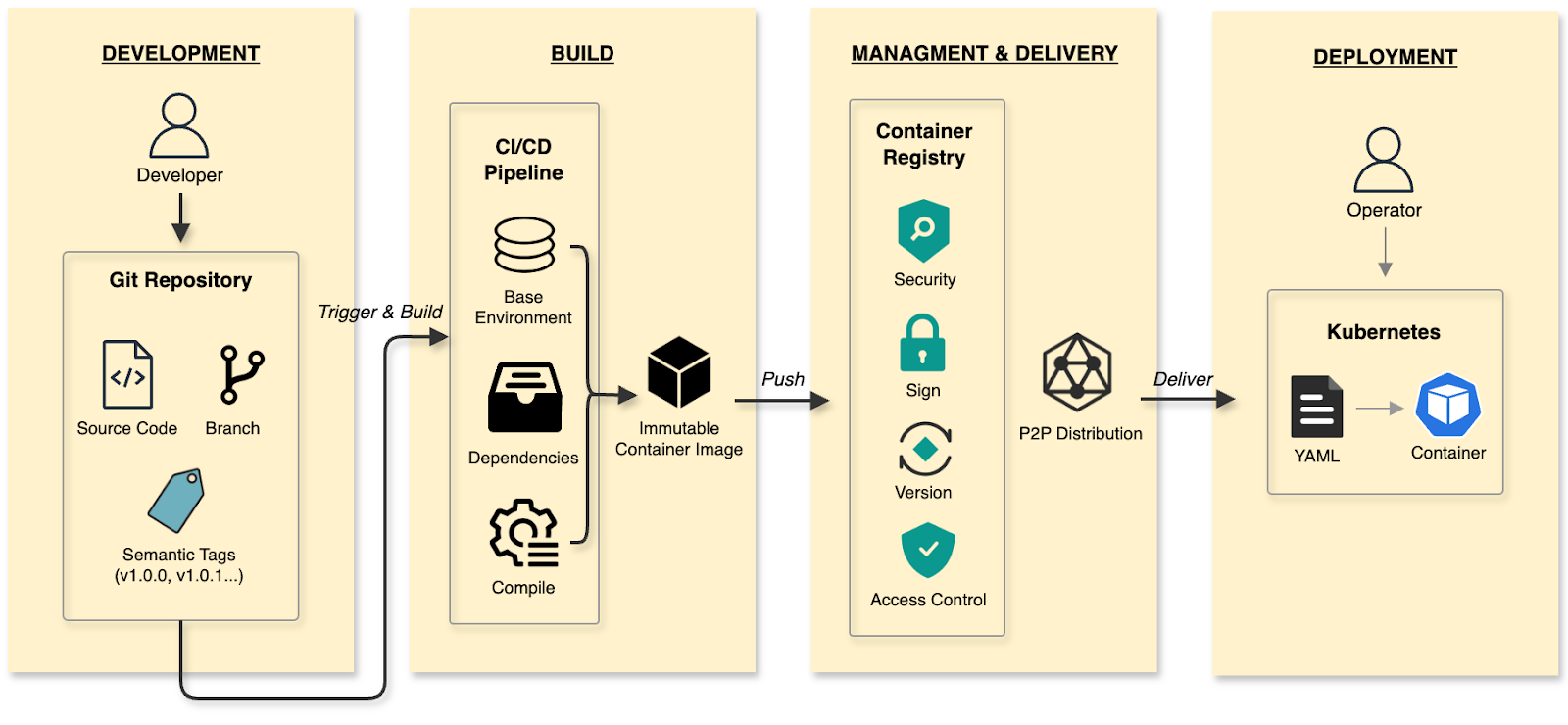

In the cloud-native era, developers have long established a mature and efficient paradigm for software delivery.
The software delivery:

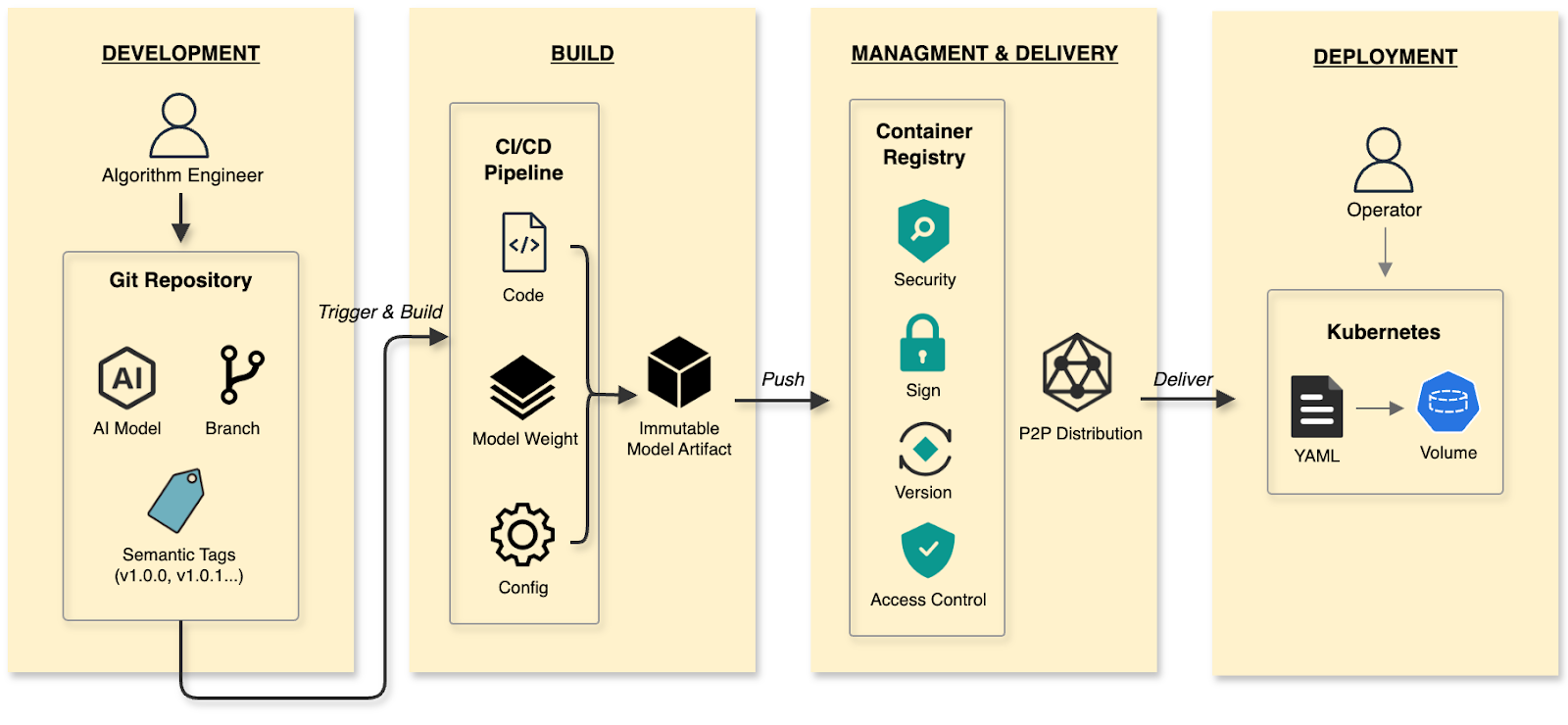

The cloud native AI model delivery:
By applying software delivery paradigms and supply chain thinking to model lifecycle management, we constructed a granular, efficient system that resolves the challenges of managing and distributing AI models in production.

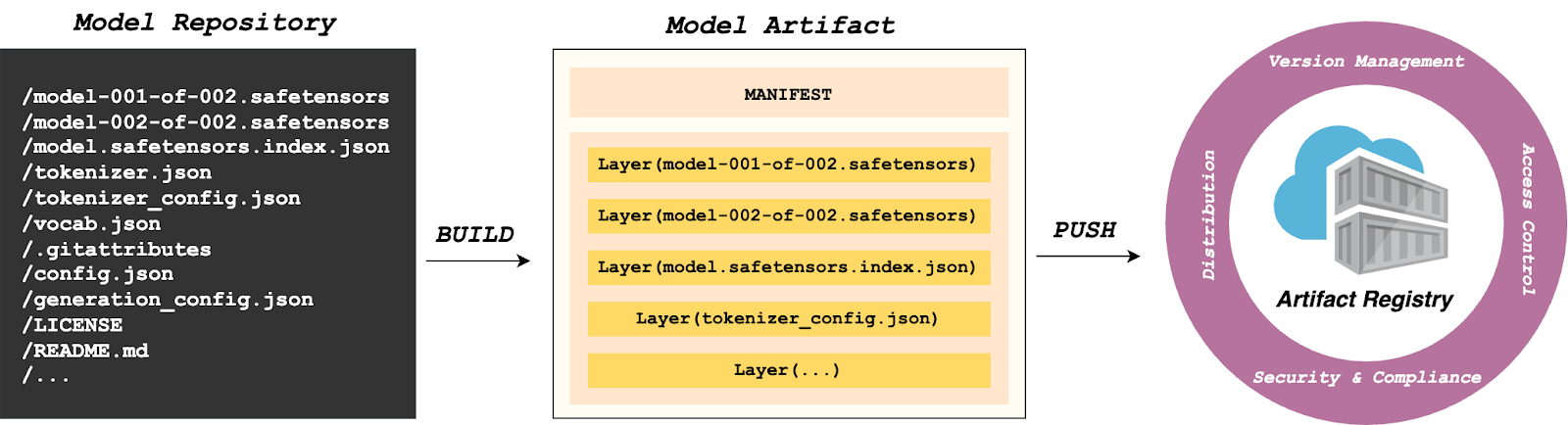

modctl is a CLI tool designed to package AI models into OCI artifacts. It standardizes versioning, storage, distribution and deployment, ensuring integration with the cloud-native ecosystem.
Run the following in the model directory to generate a definition file.
modctl modelfile generate .
You can also customize the content of the Modelfile.
# Model name (string), such as llama3-8b-instruct, gpt2-xl, qwen2-vl-72b-instruct, etc.
NAME qwen2.5-0.5b
# Model architecture (string), such as transformer, cnn, rnn, etc.
ARCH transformer
# Model family (string), such as llama3, gpt2, qwen2, etc.
FAMILY qwen2
# Model format (string), such as onnx, tensorflow, pytorch, etc.
FORMAT safetensors
# Specify model configuration file, support glob path pattern.
CONFIG config.json
# Specify model configuration file, support glob path pattern.
CONFIG generation_config.json
# Model weight, support glob path pattern.
MODEL *.safetensors
# Specify code, support glob path pattern.
CODE *.py
modctl login -u username -p password harbor.registry.com
modctl build -t harbor.registry.com/models/qwen2.5-0.5b:v1 -f Modelfile .
A Model Manifest is generated after the build. Descriptive information such as ARCH, FAMILY, and FORMAT is stored in a file with the media type application/vnd.cncf.model.config.v1+json.
{
"schemaVersion": 2,
"mediaType": "application/vnd.oci.image.manifest.v1+json",
"artifactType": "application/vnd.cncf.model.manifest.v1+json",
"config": {
"mediaType": "application/vnd.cncf.model.config.v1+json",
"digest": "sha256:d5815835051dd97d800a03f641ed8162877920e734d3d705b698912602b8c763",
"size": 301
},
"layers": [
{
"mediaType": "application/vnd.cncf.model.weight.v1.raw",
"digest": "sha256:3f907c1a03bf20f20355fe449e18ff3f9de2e49570ffb536f1a32f20c7179808",
"size": 4294967296
},
{
"mediaType": "application/vnd.cncf.model.weight.v1.raw",
"digest": "sha256:6d923539c5c208de77146335584252c0b1b81e35c122dd696fe6e04ed03d7411",
"size": 5018536960
},
{
"mediaType": "application/vnd.cncf.model.weight.config.v1.raw",
"digest": "sha256:a5378e569c625f7643952fcab30c74f2a84ece52335c292e630f740ac4694146",
"size": 106
},
{
"mediaType": "application/vnd.cncf.model.weight.code.v1.raw",
"digest": "sha256:15da0921e8d8f25871e95b8b1fac958fc9caf453bad6f48c881b3d76785b9f9d",
"size": 394
},
{
"mediaType": "application/vnd.cncf.model.doc.v1.raw",
"digest": "sha256:5e236ec37438b02c01c83d134203a646cb354766ac294e533a308dd8caa3a11e",
"size": 23040
}
]
}
modctl push harbor.registry.com/models/qwen2.5-0.5b:v1

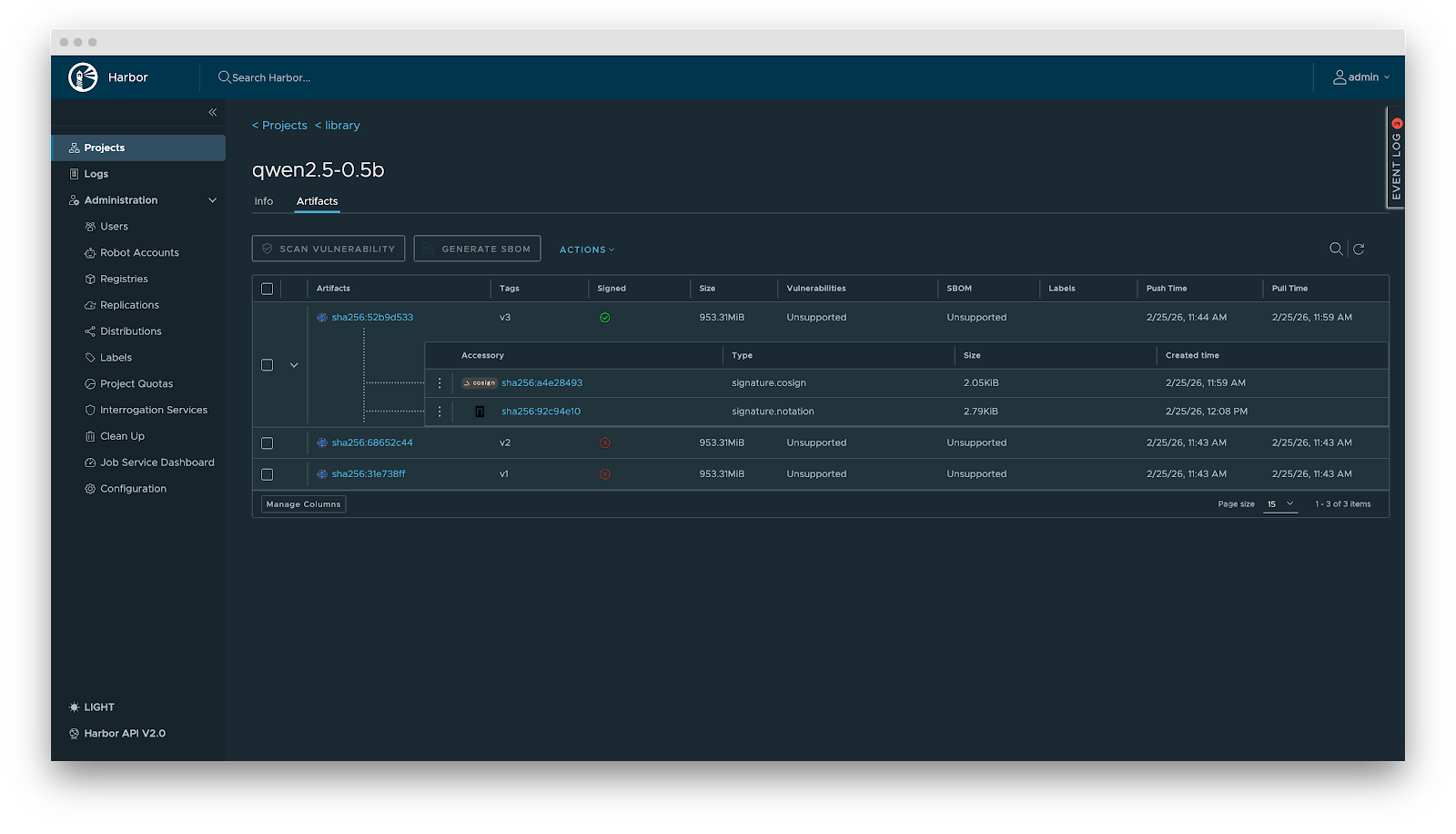

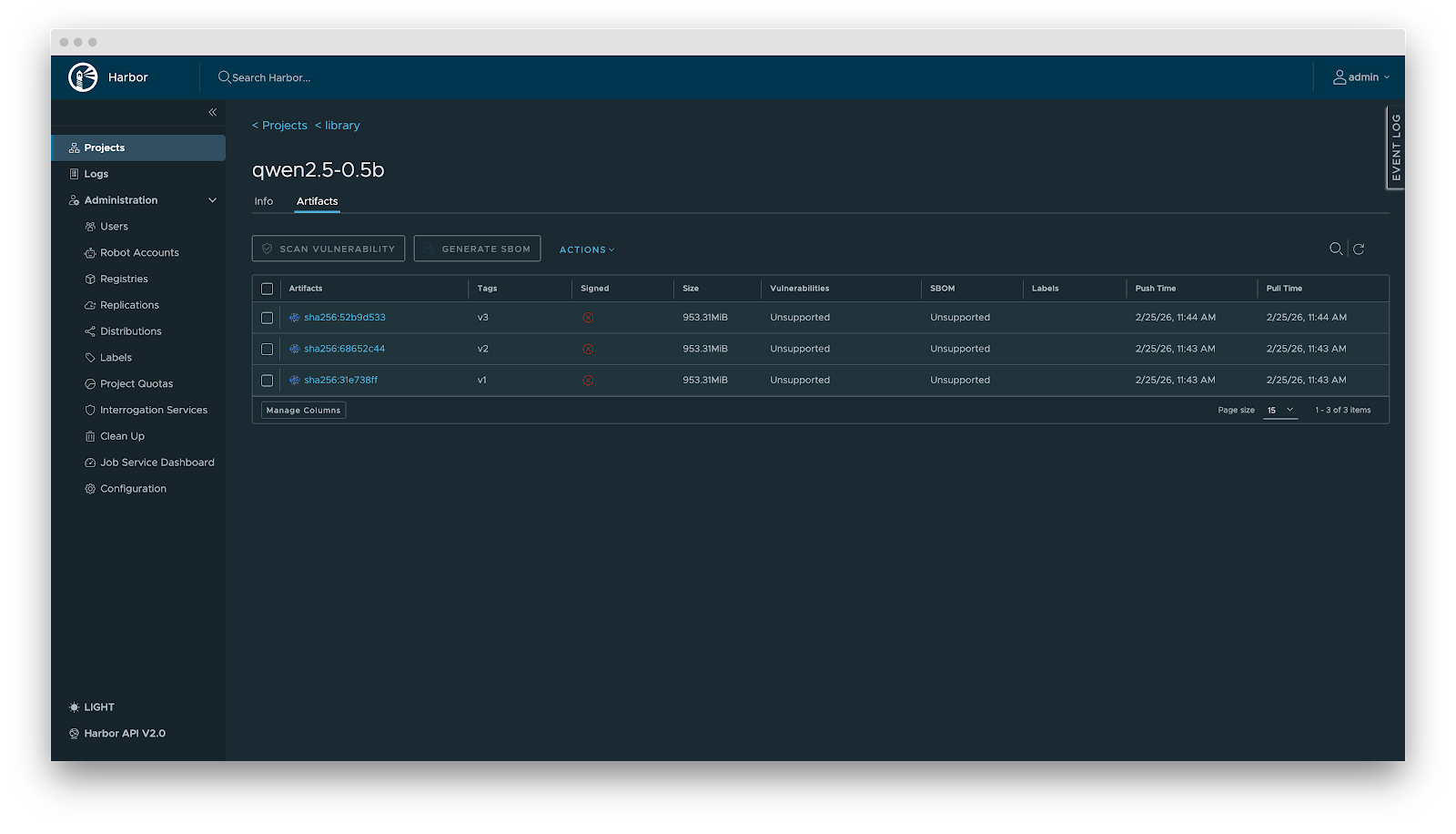

Current AI infrastructure workflows focus heavily on model distribution performance, often ignoring model management standards. Manual copying works for experiments, but in large-scale production, lacking unified versioning, metadata specs, and lifecycle management is poor practice. As the standard cloud-native Artifact Registry, Harbor is ideally suited for model storage, treating models as inference artifacts.

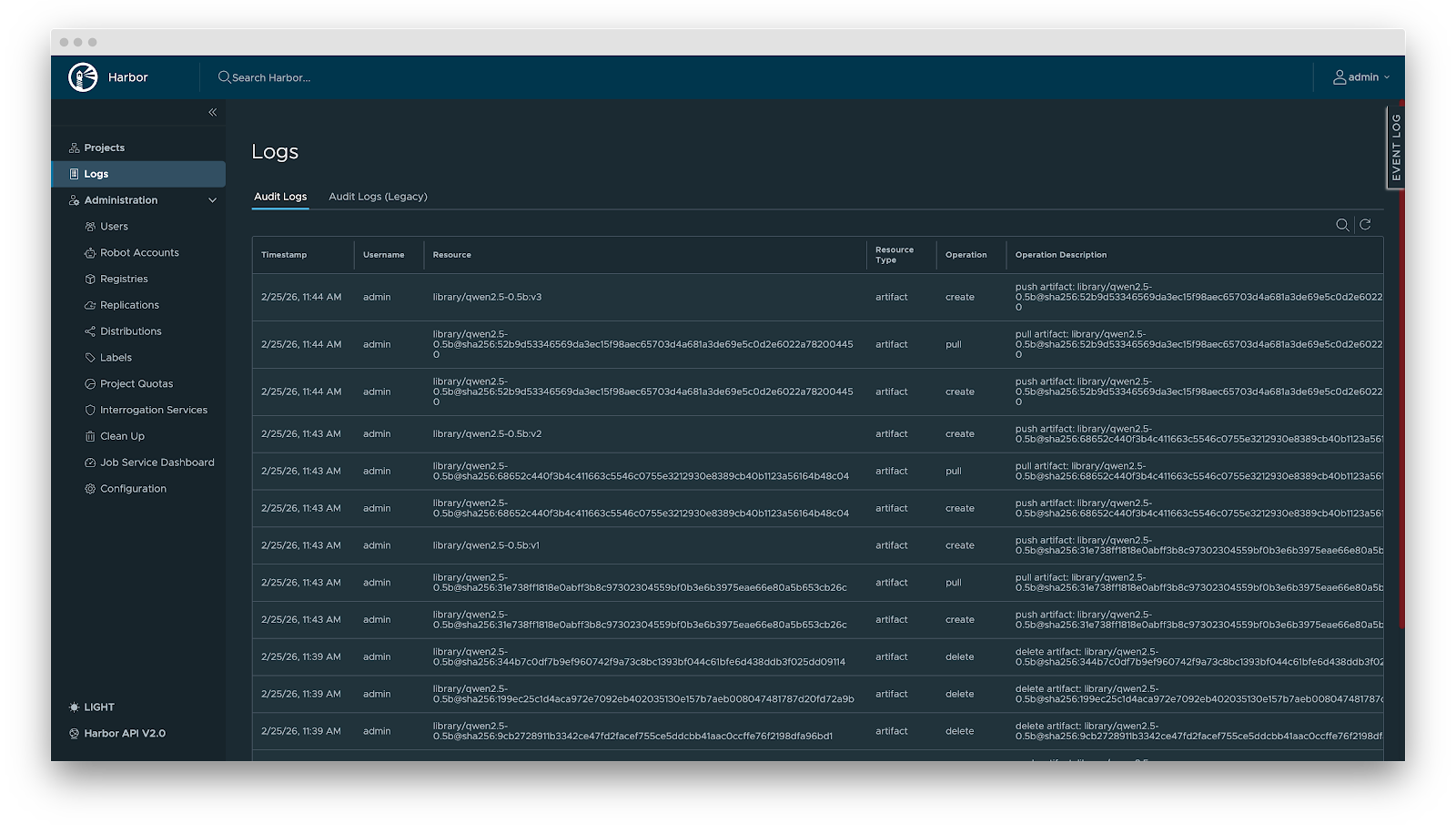

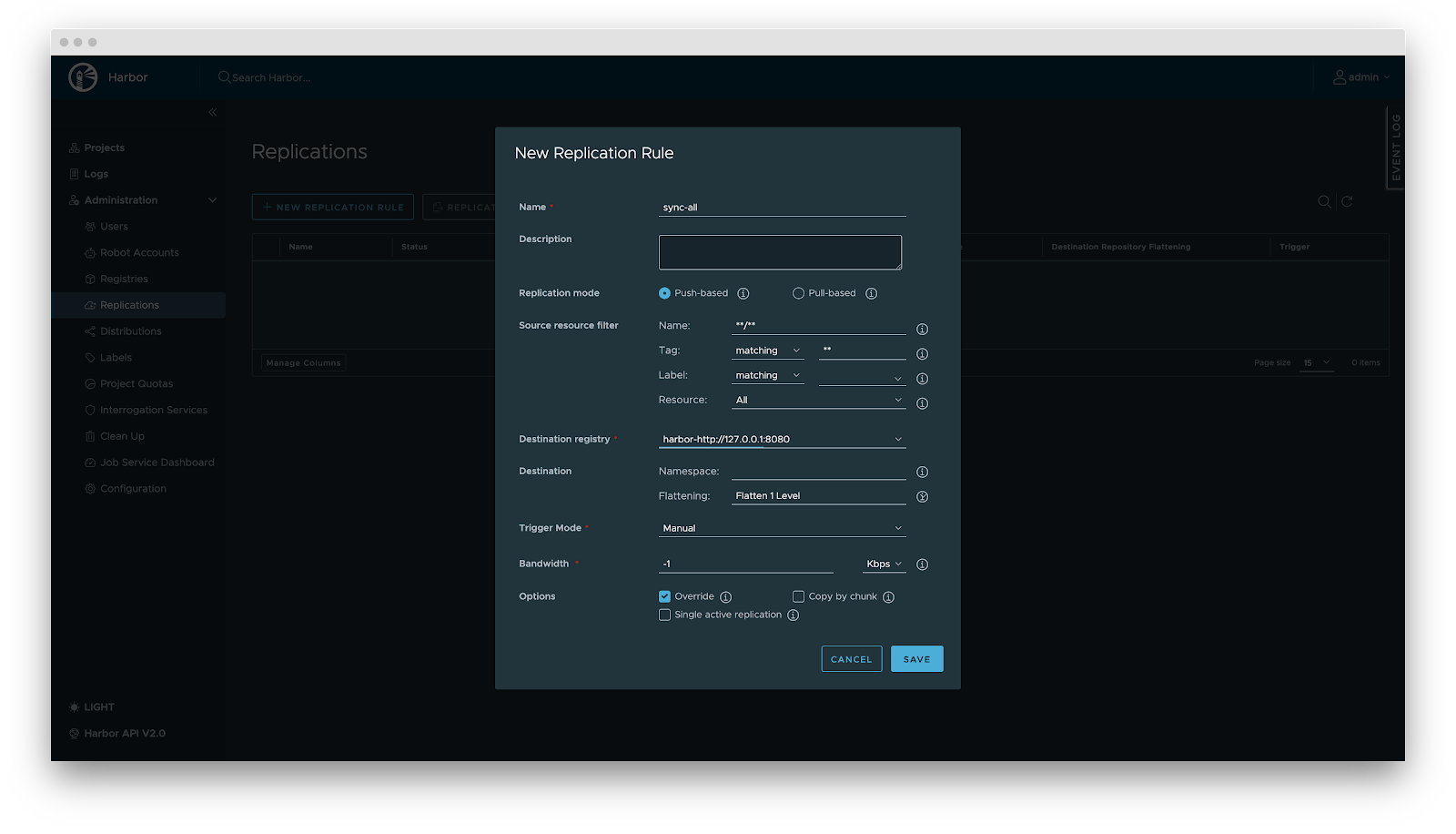

Harbor standardizes AI model management through:

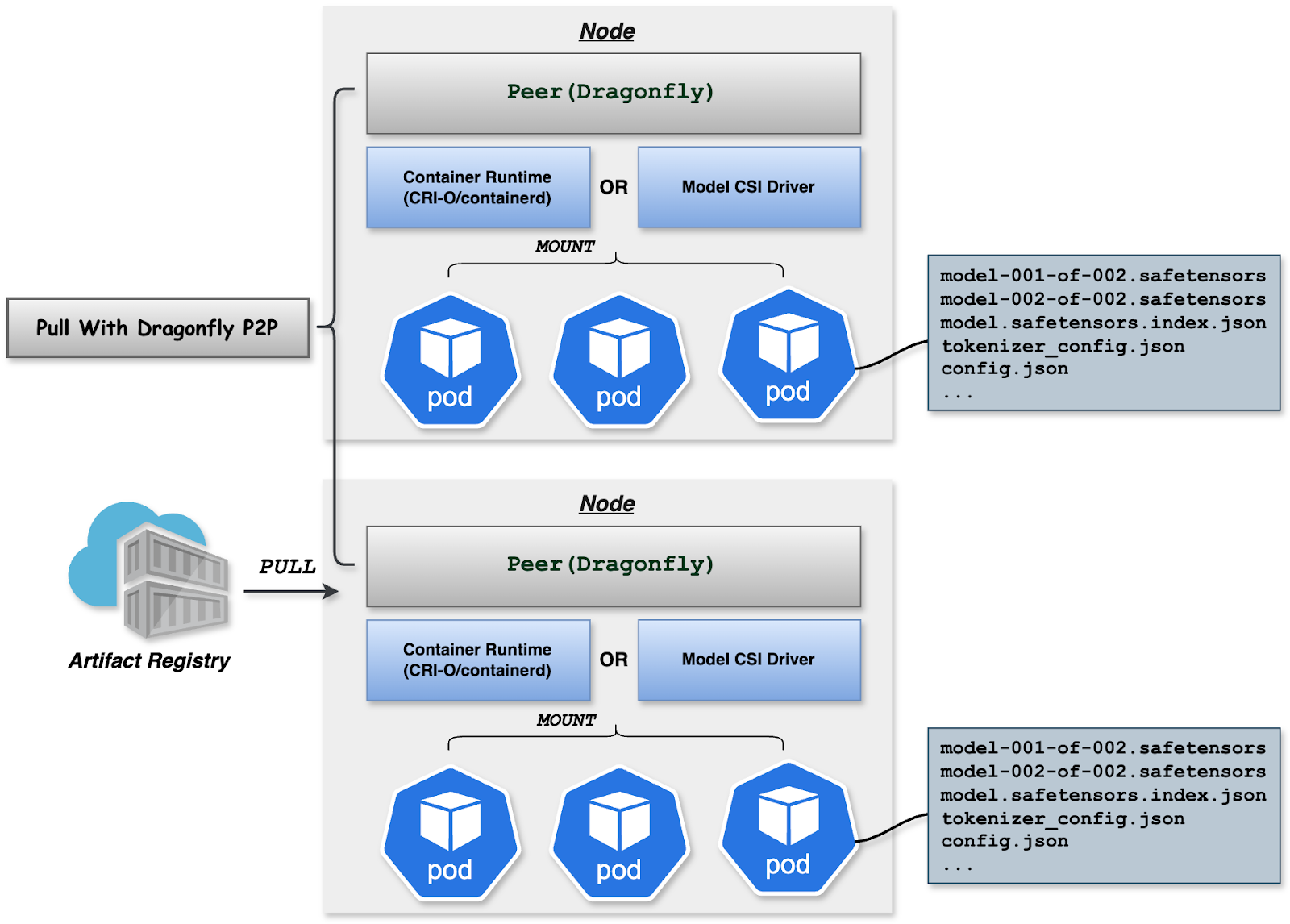

Downloading terabyte-sized model weights directly from the origin introduces bandwidth bottlenecks. We utilize Dragonfly for P2P-based distribution, integrated with Harbor for preheating.

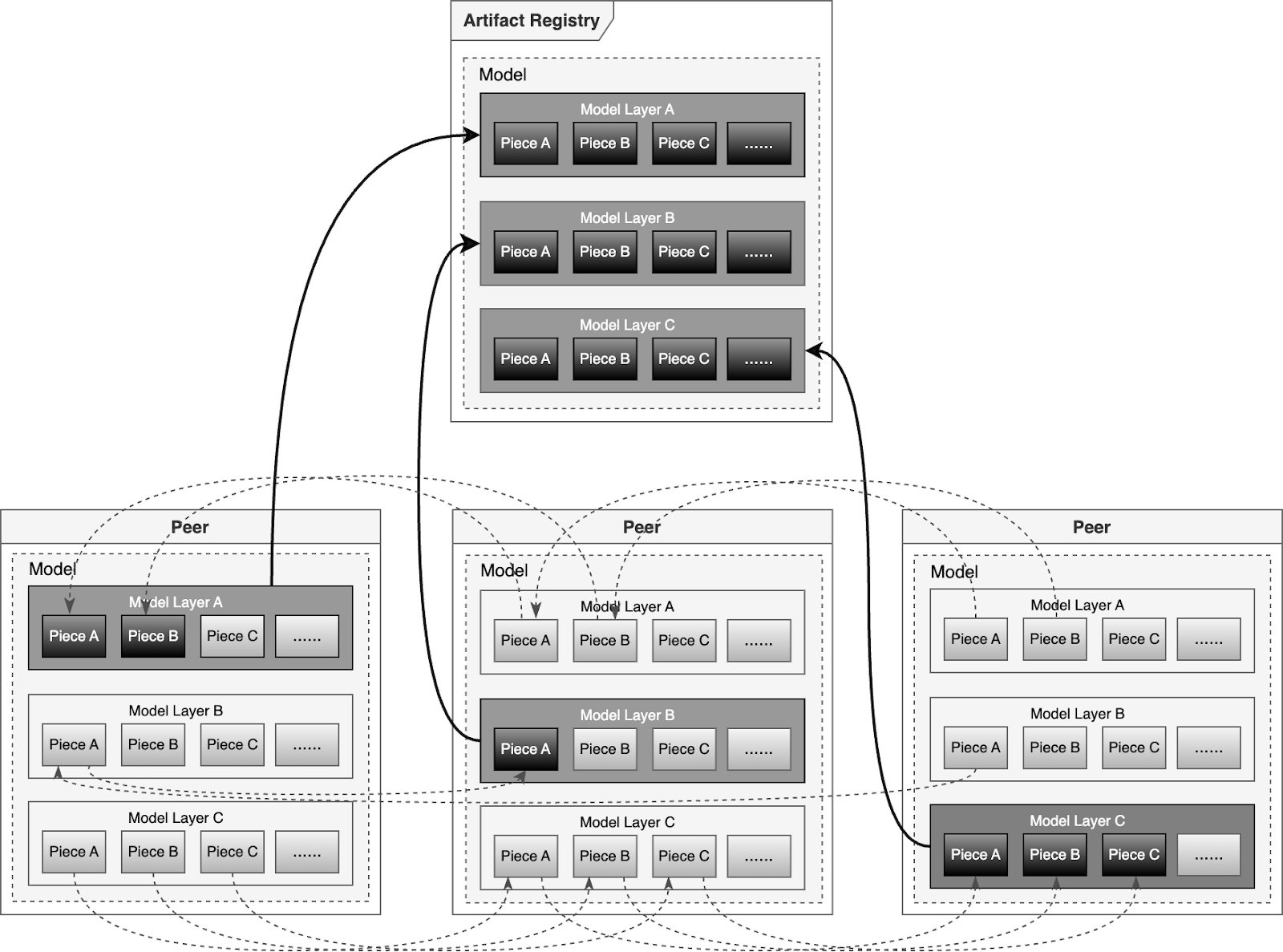

For large-scale distribution scenarios, Dragonfly has been deeply optimized based on P2P technology. Taking the example of 500 nodes downloading a 1TB model, the system distributes the initial download tasks of different layers across nodes to maximize downstream bandwidth utilization and avoid single-point congestion. Combined with a secondary bandwidth-aware scheduling algorithm, it dynamically adjusts download paths to eliminate network hotspots and long-tail latency. For individual model weight, Dragonfly splits individual model weights into pieces and fetches them concurrently from the origin. This enables streaming-based downloading, allowing users to share models without waiting for the complete file. This solution has been proven in high-performance AI clusters, utilizing 70%-80% of each node’s bandwidth and improving model deployment efficiency.

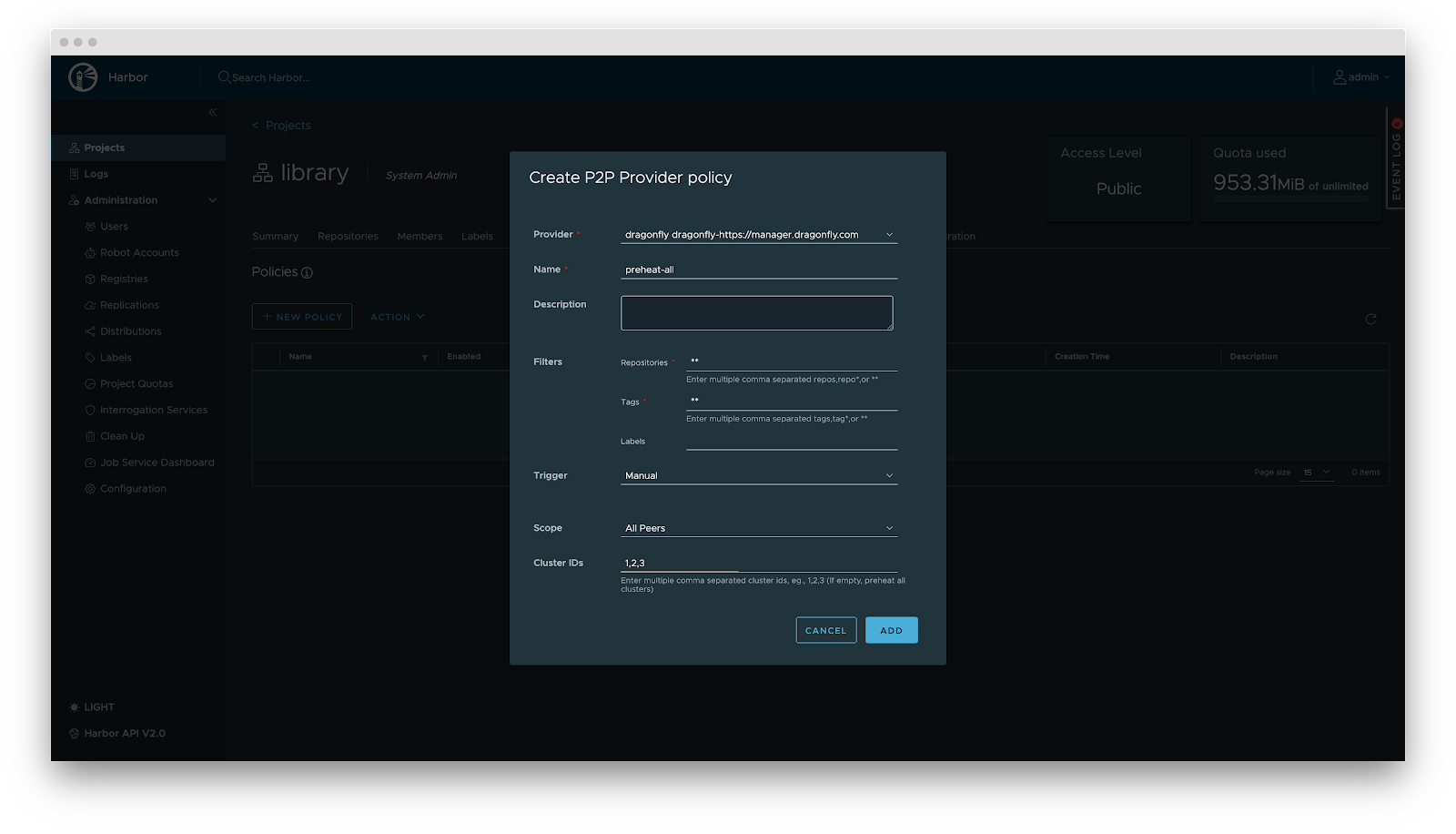

For latency-sensitive inference services, Harbor triggers Dragonfly to distribute and cache data on target nodes before service scaling. When the instance starts, the model loads from the local disk, achieving zero network latency.

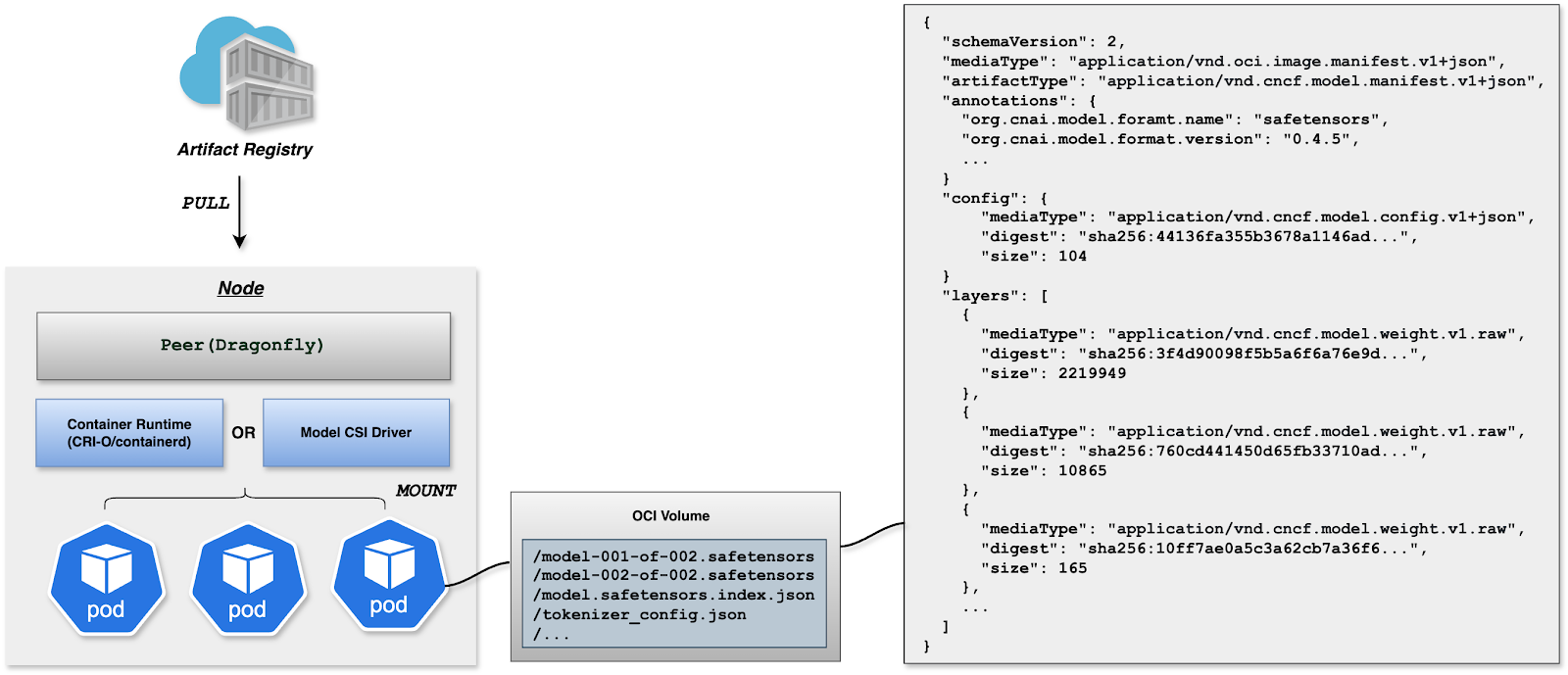

Deployment focuses on decoupling the Model (Data) from the Inference Engine (Compute). By leveraging Kubernetes declarative primitives, the Engine runs as a Container, while the Model is mounted as a Volume. This native approach not only enables multiple Pods on the same node to share and reuse the model, saving disk space, but also leverages the preheating and P2P capabilities of Harbor & Dragonfly to eliminate the latency of pulling large model weights, significantly improving startup speed.
Native support for mounting OCI artifacts as volumes via CRI-O/containerd. This feature was introduced as alpha in Kubernetes 1.31 (requires enabling the ImageVolume feature gate) and promoted to beta in Kubernetes 1.33 (enabled by default, no feature gate configuration needed). CRI-O specifically enhances this for LLMs by avoiding decompression overhead at mount time by storing layers uncompressed, resulting in superior performance when mounting large model files.
apiVersion: v1
kind: Pod
metadata:
name: vllm-cpu-inference
labels:
app: vllm
spec:
containers:
- name: vllm
image: openeuler/vllm-cpu:latest
command:
- 'python3'
- '-m'
- 'vllm.entrypoints.openai.api_server'
args:
- '--model'
- '/models'
- '--dtype'
- 'float32'
- '--host'
- '0.0.0.0'
- '--port'
- '8000'
- '--max-model-len'
- '1024'
- '--disable-log-requests'
env:
- name: VLLM_CPU_KVCACHE_SPACE
value: '1'
- name: VLLM_WORKER_MULTIPROC_METHOD
value: 'spawn'
resources:
requests:
memory: '2Gi'
cpu: '1'
limits:
memory: '16Gi'
cpu: '8'
volumeMounts:
- name: model-volume
mountPath: /models
readOnly: true
ports:
- containerPort: 8000
protocol: TCP
name: http
livenessProbe:
httpGet:
path: /health
port: 8000
initialDelaySeconds: 60
periodSeconds: 10
timeoutSeconds: 5
readinessProbe:
httpGet:
path: /health
port: 8000
initialDelaySeconds: 30
periodSeconds: 5
volumes:
- name: model-volume
image:
reference: ghcr.io/chlins/qwen2.5-0.5b:v1
pullPolicy: IfNotPresent
---

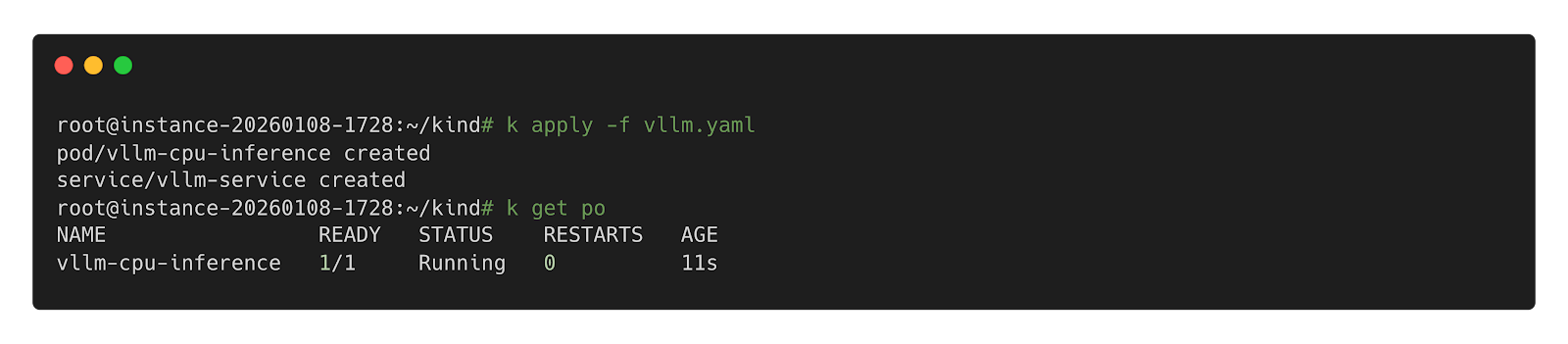

apiVersion: v1
kind: Service
metadata:
name: vllm-service
spec:
selector:
app: vllm
ports:
- port: 8000
targetPort: 8000
protocol: TCP
name: http
type: ClusterIP
For compatibility with Kubernetes 1.31 and older, we offer the Model CSI Driver as an interim solution to mount and deploy models as volumes. As OCI Volumes are slated for GA in Kubernetes 1.36, shifting to native OCI Volumes is recommended for the long term.
apiVersion: v1
kind: Pod
metadata:
name: vllm-cpu-inference
labels:
app: vllm
spec:
containers:
- name: vllm
image: openeuler/vllm-cpu:latest
command:
- 'python3'
- '-m'
- 'vllm.entrypoints.openai.api_server'
args:
- '--model'
- '/models'
- '--dtype'
- 'float32'
- '--host'
- '0.0.0.0'
- '--port'
- '8000'
- '--max-model-len'
- '1024'
- '--disable-log-requests'
env:
- name: VLLM_CPU_KVCACHE_SPACE
value: '1'
- name: VLLM_WORKER_MULTIPROC_METHOD
value: 'spawn'
resources:
requests:
memory: '2Gi'
cpu: '1'
limits:
memory: '16Gi'
cpu: '8'
volumeMounts:
- name: model-volume
mountPath: /models
readOnly: true
ports:
- containerPort: 8000
protocol: TCP
name: http
livenessProbe:
httpGet:
path: /health
port: 8000
initialDelaySeconds: 60
periodSeconds: 10
timeoutSeconds: 5
readinessProbe:
httpGet:
path: /health
port: 8000
initialDelaySeconds: 30
periodSeconds: 5
volumes:
- name: model-volume
csi:
driver: model.csi.modelpack.org
volumeAttributes:
model.csi.modelpack.org/reference: ghcr.io/chlins/qwen2.5-0.5b:v1
---
apiVersion: v1
kind: Service
metadata:
name: vllm-service
spec:
selector:
app: vllm
ports:
- port: 8000
targetPort: 8000
protocol: TCP
name: http
type: ClusterIP
